Compressed Air Filtration Systems
Desiccant Air Dryer (Heatless Type)
Condensate moisture along with oil and dust particles for downstream application is a major problem. The only way to remove these unwanted contaminants (Heatless) dryer is a complete purification package, it includes filtration plus drying.
Refrigerated Air Dryer
The wet compressed air enters in to compact three in one heat exchanger (Economizer, Evaporator & Moisture Separator) for pre-cooling and passes through moisture separator and separates condensate and will be discharged by auto drain valve.

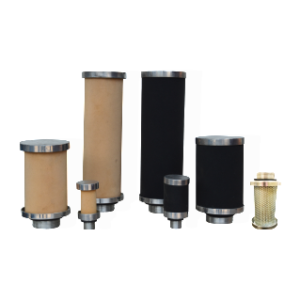

Coalescing Filters
To remove water/oil liquid form as well as mist, dust up to 0.2 microns, and vapor oil. In the Compressed air systems install in the series near to the
Moisture Separator
Moisture Separator removes big droplets of moisture & oil from compressed air. For better efficiency install at coolest place in the pipeline.
After Cooler
After cooler will help to reduce the temperature of compressed air up to ambient temperature.
Air Receiver
Pressure Vessel are designed as per IS Standards. The role of Air Receiver is to store the pressurized air and to maintain constant pressure at utility.

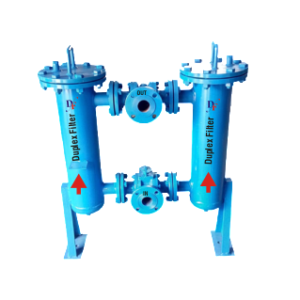

Duplex Filter
Duplex Filter is used for liquid/water and air remove large particles in the pipeline or system.

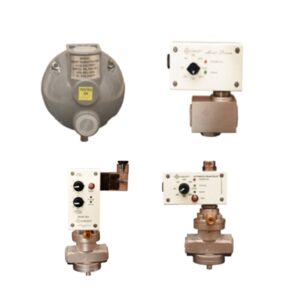

Automatic Drain Valve (ADV)
Mechanical Auto Drain
Valve
ADV-50 (Regular)
Dual Timer Based ADV-151
ADV-151 (Full Bore)
ADV-50 (Regular)
Dual Timer Based ADV-151
ADV-151 (Full Bore)
